**This is a limited-time pre-order offer with an estimated delivery time of 12 weeks.**

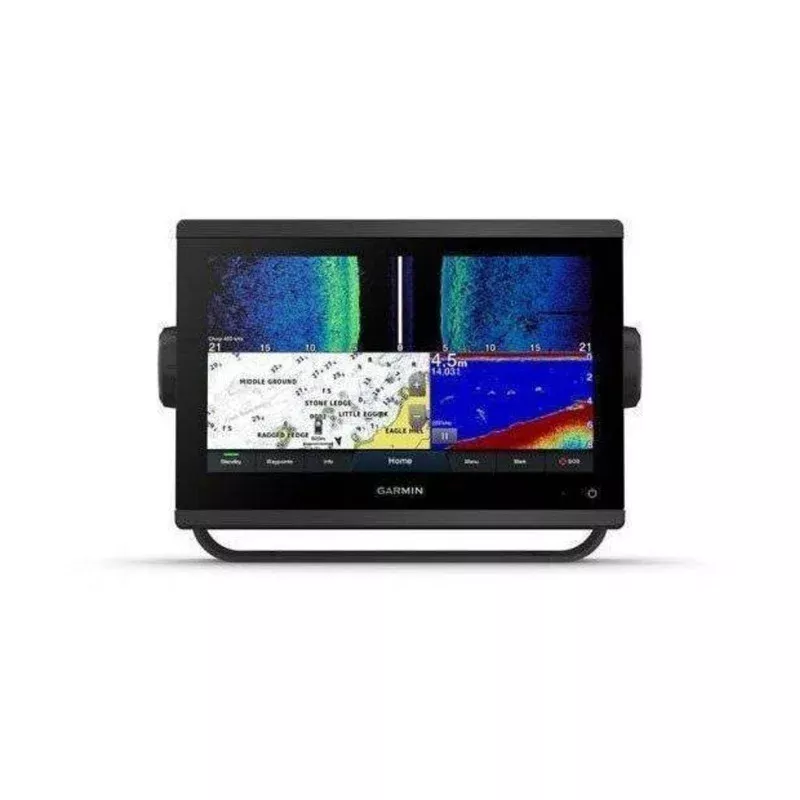

GPSMAP923xsv
SideV, ClearV and Traditional CHIRP Sonar with Worldwide Basemap
| Dimension |
9.2″ x 6.4″ x 3″ (23.3 x 16.2 x 7.6 cm) |
| Weight |
3.6 lbs (1.6 kg) |
| Water rating |
IPX7 |
| Touchscreen |
Yes |
| Display Type |
WXGA display |
| Display Size |
7.8″ x 4.4″; 9.0″ diagonal
(19.9 x 11.2 cm; 22.9 cm diagonal)
|
| Display Resolution |
1280 x 720 pixels |
| Mounting Options |
Bail, flush or flat |
| Input |
Touchscreen |
| Polarised Support |
Yes |
| Maps & memory |
| Accepts Data Cards |
2 microSD cards (back of unit) |
| Waypoints |
5,000 |
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation Routes |
100 |
| Sensors |
| GPS |
Yes |
| GLONASS |
Yes |
| Galileo |
Yes |
| Has built-in receiver |
Yes |
| Receiver |
10 Hz high-sensitivity |
| NMEA 2000compatible |
Yes |
| NMEA 0183 Compatible |
Yes |
| Supports WAAS |
Yes |
| Built-in maps |
| Tide tables |
Yes |
| Optional map support |
| BlueChart g3 |
Yes |
| BlueChart g3 Vision |
Yes |
| LakeV g3 |
Yes |
| LakeV g3 Ultra |
Yes |
| Garmin Navionics+ |
Yes |
| Garmin Navionics Vision+ |
Yes |
| TOPO 100K |
Yes |
| Standard Mapping |
Yes |
| Garmin Quickdraw Contours |
Yes |
| Raster chart support |
Yes |
| Chartplotter features |
| Garmin SmartMode compatible (customisable monitor presets) |
Yes |
| AIS |
Yes |
| DSC |
Yes |
| Supports Fusion-Link compatible radios |
Yes |
| GSD Black Box Sonar Support |
Yes |
| GCV Black Box Sonar Support |
Yes |
| ActiveCaptain Mobile Planning Compatible |
yes
|
| GRID (Garmin Remote Input Device) compatible |
Yes |
| Wireless Remote Compatible |
Yes |
| Sailing features |
Yes |
| Spoken audio alerts |
Yes |
| OneHelm support |
Yes |
| Electrical features |
| POWER INPUT |
10 to 32 Vdc |
| Typical current draw at 12 Vdc |
1.37 A |
| Maximum current draw at 12 Vdc |
3.20 A |
| Maximum power usage at 10 Vdc |
40.2W |
| Sonar features & specifications |
| Displays sonar |
Yes |
| Power output |
1 kW |
| Traditional sonar (dual frequency/beam) |
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearV |
Built-in 260/455/800/1000/1200 kHz |
| SideV |
Built-in 260/455/800/1000/1200 kHz |
| Panoptix sonar |
Yes |
| LiveScope |
Yes |
| Connections |
| NMEA 2000 ports |
1 |
| NMEA 0183 Input (Rx) Ports |
1 (Differential) |
| NMEA 0183 output (Tx) ports |
1 |
| Video input ports |
1 BNC |
| J1939 ports |
1 |
| Garmin Marine Network Ports |
1 |
| 12-pin transducer ports |
1 |
| USB ports |
Yes |
| Bluetoothcalling |
Yes |
| ANT+ (Connectivity) |
Yes |
| Garmin Wi-Fi network (local connection) |
Yes |
